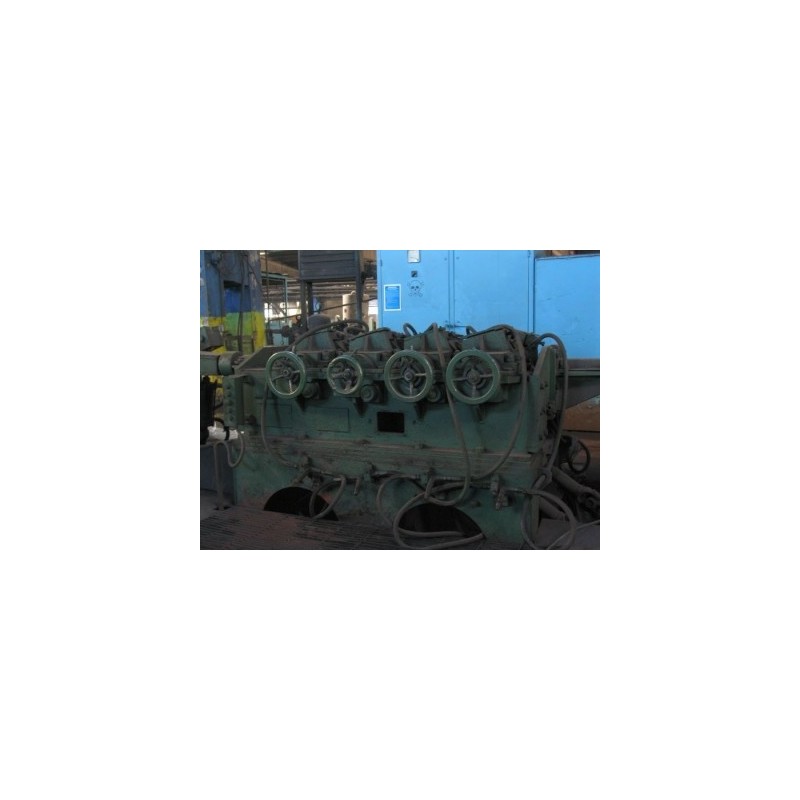

32 Mm Round Bar Straightening Machine- Kyoritsy Kikai

Manufacturer:KYORITSU KIKAI, Japan
Model:Multiroll Roll
Year:18982
Location: Romania
Technical Details:
Steel grade material : special steel bars
Type : Horizontal, Zigzag, 8 Rolls (6 rolls driven)
Shape and dimension :
* Round steel bar diameter : 16 to 32 mm ;
* Length of bars : 3,000 to 6,000 mm ;
Tensile Strength : max. 125 kg/sqmm ;
Straightening accuracy : les than 2 mm/1000 mm and
less than 6 mm/6000 mm at bar size from 15 to 32 mmØ ;
Production capacity : 3.15 T/H ;
Straightening speed : Low – 20 m/min ; High : 40 m/min
Main motor : AC 11 / 5.5 kW 4/8 P, 380 V. 50 Hz
Description:complete machine, good condition
