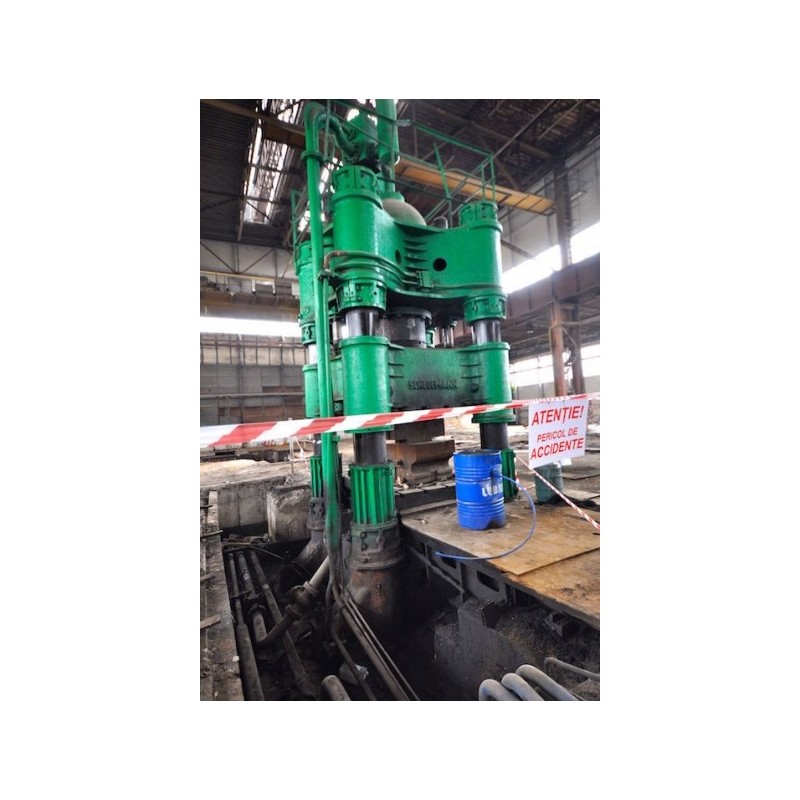

Schloemann 1500 Ton Hydraulic Forging Press

Manufacturer:SCHLOEMAN
Year:1965
Location: Romania
Technical Details:
Capacity: 1500 ton
1.) Bed size 2200x1650 mm
2.) Stroke 840 mm

3.) Daylight 1600 mm

4.) Shut height – 1000 mm
5.) size of moving table1650X4000 mm;
6.stroke of moving table1300 mm
7.) Column diameter 410 mm

8.) Cylinder diameter 1000 mm

9.) Distance between the columns both F-B and L-R. 1600x 1600 mm
10.) Press dimensions including L x W and H both above and below the floor level LxW 3300x 3000m; H above floor 6300mm; h below floor 1050mm

11.) Press weight ; estimated 200 ton without hydraulics
