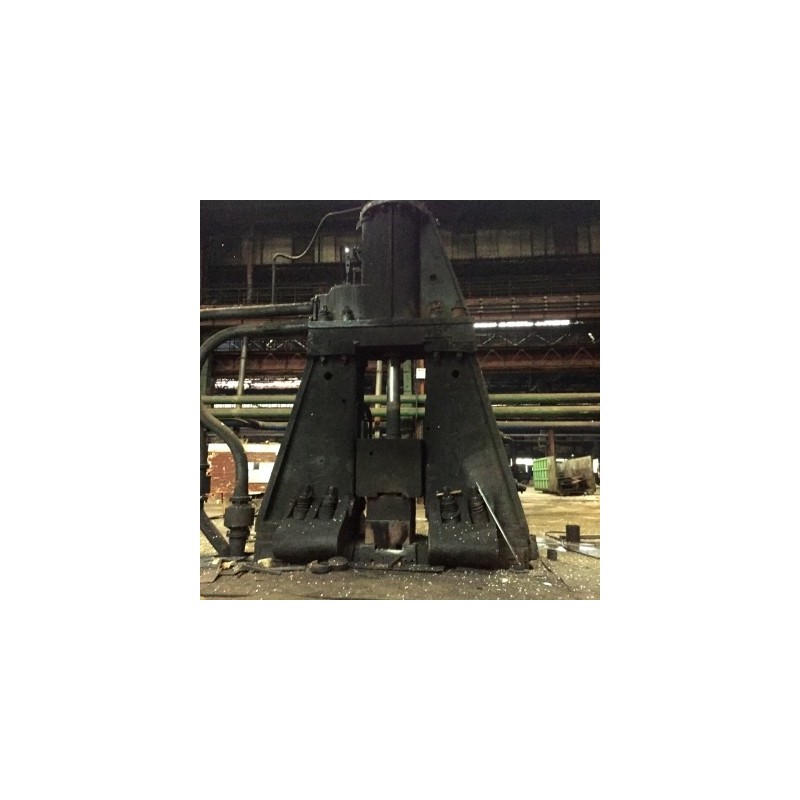

10000 Kg Close Die Forging Hammer

Manufacturer: RUSSIA
Model: M 2150
Year:1985
Location: Romania

Technical Details:

Weight of the falling parts,kg......10000
Blow energy,kgf.m........26.000
Max no. of ram strokes per minute.......30
Ram travel,mm......1400
Distance between columns,mm........1000
Ram dimensions from front to back,mm.......1180
Die support dimensions fron front to back,mm.........1320
Min. Distance between the ram and the die support,mm.......450
Air(steam) pressure,kgf/cmp........7-9
Overall Dimensions,mm:
-lenght...........4400
-width............2700
-height from the ground........7238
Anvil weight,kg(aprox.).......200.000
Total weight of the hammer,kg (aprox.).........284.000


Description:
