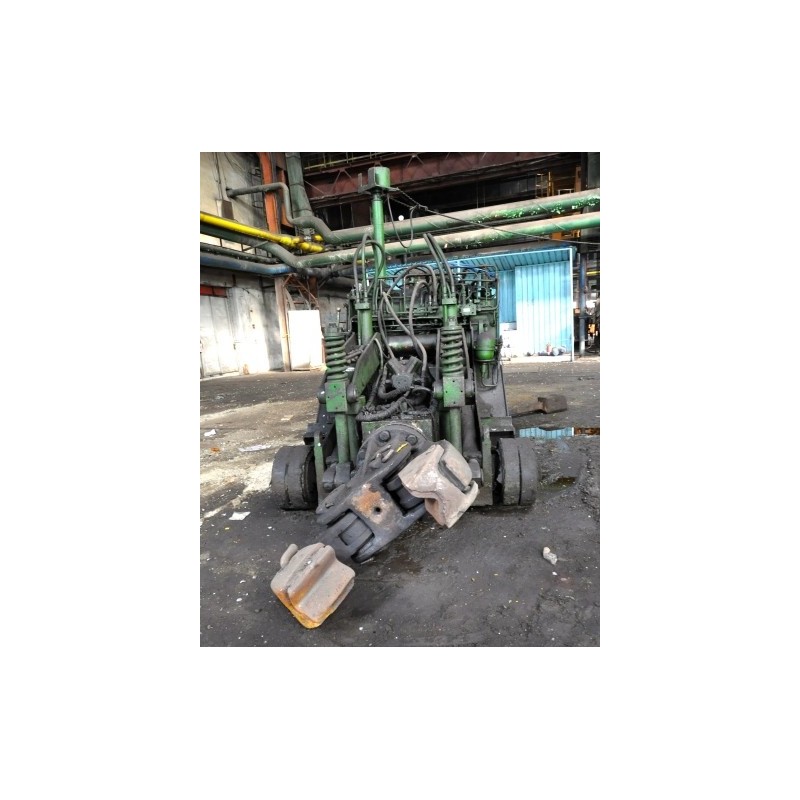

2000 Kg Dango & Dienenthal Free Wheel Forging Manipulator

Manufacturer: DANGO $ DIENENTHAL
Model:10.2
Year:
Location: Romania
Technical Details:
Built 1990
Major specifications: metric standard
Carrying capacity while forging.........2,000.0 kg......... 4,409.3 lbs
Max. torque at the tongs.........50.0 kNm
Dimensions:
Length..........5,505.0 mm ..... 216.7”
Width..........2,310.0 mm....90.9”
Height....3,600.0 mm............ 141.7”
Weight...... 13,100.0 kg...... 28,880.5 lbs
Position of tongs above floor:
Deepest .......... 550.0 mm .......21.65”
Parallel ........800.0 mm .......31.5”
Opening of tongs ... 900.0 mm .......35.4”
Power of motor for hydraulic.... 37 kW – 380 V / 50 Hz
Description: COMPLETE
